DC POWER SUPPLY

Features

60 V / 80 V / 160 V / 240 V / 320 V / 500 V / 1000 V / 1500 V / 2000 V / 3000 V

9 kW / 18 kW / 27 kW / 36 kW / 45 kW / >108...2000+ kW

modularly scalable

up to 44 power supply modules, serial / parallel / combined

Voltage dynamics:

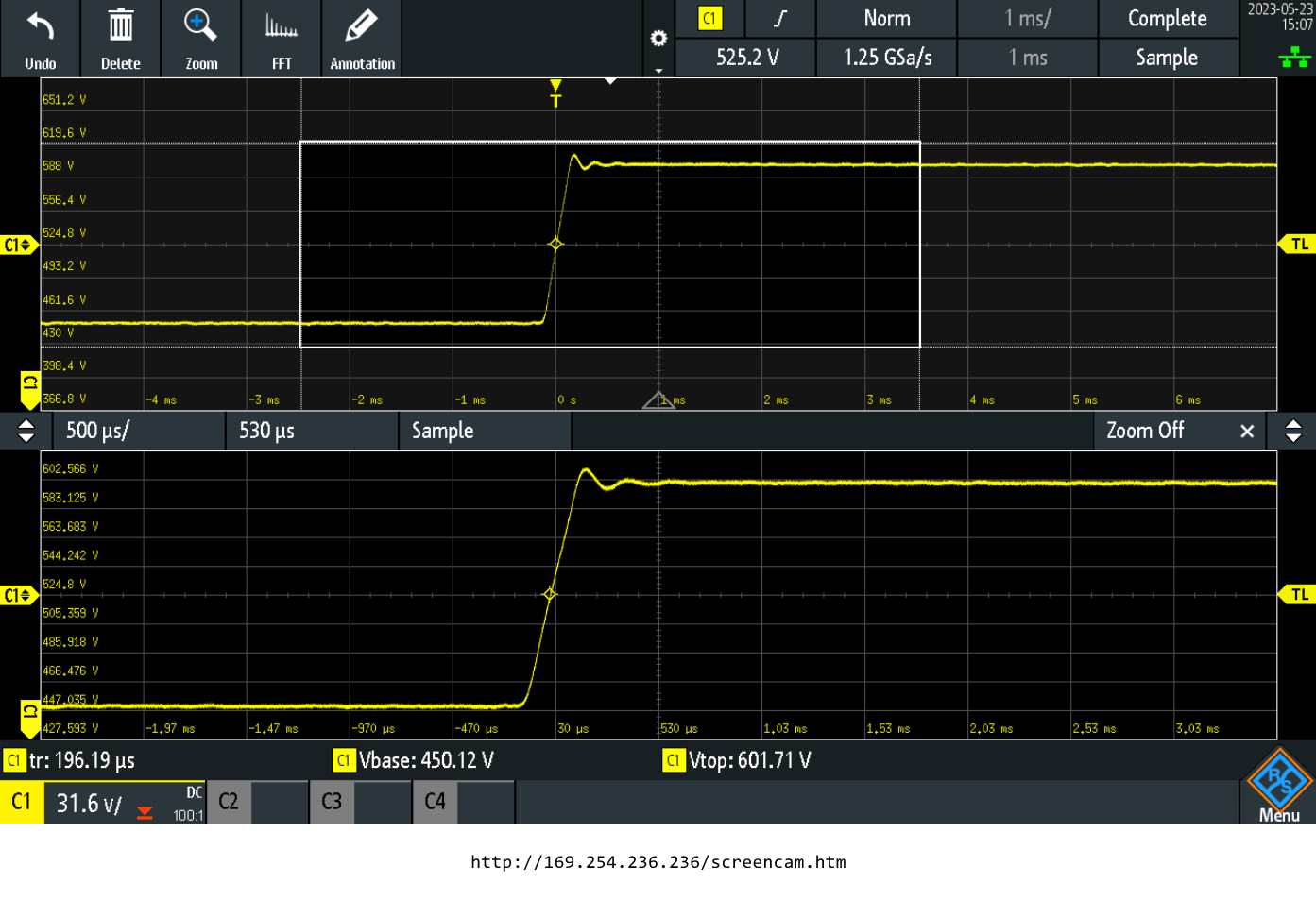

Voltage rise time 10% - 90%: <200 µs

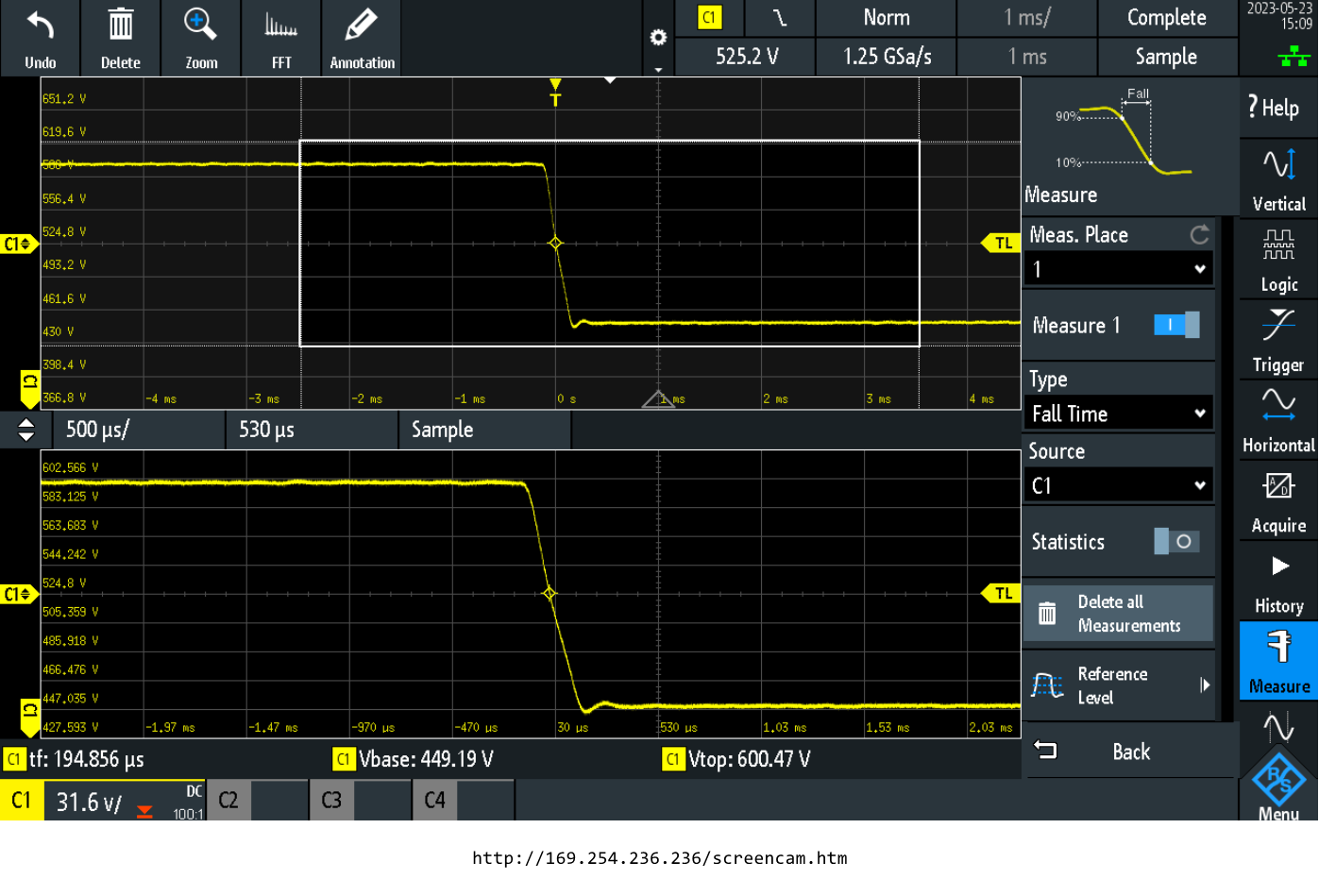

Voltage fall time 90% - 10%: <200 µs

Technology

• Technologically advanced, fast switching, compact 19-inch power supplies
• High control dynamics in the 100...200 µs range – even at higher power levels
• Exceptional current accuracy of <0.02% FS, additional high-resolution current measurement range included as standard
• Full power regeneration and a high degree of efficiency, resulting in significant reduction of energy consumption and heat dissipation, low acoustic noise
• Wide current-voltage range with an auto-ranging factor of 3
• Full digital CV, CC, CP, CR, and Ri-Sim control modes

System Capability

• Modular and easily scalable systems
• Parallel, series, and mixed operation with a digital high-speed bus
• Simple master-slave configuration by means of the operating software
• Turn-key cabinet solutions up to IP54 available, mobile or stationary
• Project-specific system integration according to customer specifications available
• Optional safety features such as 2-channel safety interface and insulation monitoring
• Optional third party product integration, AC/DC connectors, and cables for convenient handling

System Control

• Operating software: extended analysis, parameterization options, and calibration
• Powerful application programming interfaces (API)
• Optional front-panel-integrated control unit HMI with intuitive colour touch screen
• Optional CAN multi-protocol interface with 1 kHz data rate and 16-bit resolution
